Mark X

Mark X.jpg
Mark X.jpg

Mark X

69,000.00
Quantity:
Add To Cart



In-Process Inspection

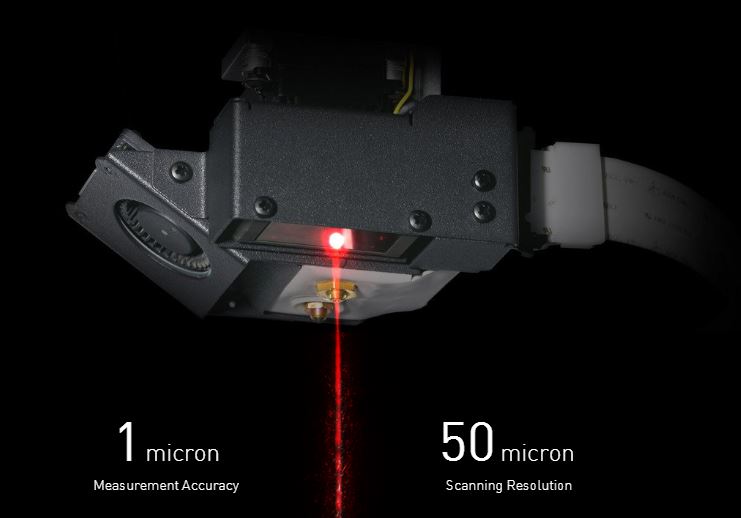

The Mark X gives you breakthrough quality and precision in 3D printing. Scan your parts mid-print using our cloud-based Eiger software and a laser displacement sensor affixed to the print head. Ensure dimensional accuracy at the most critical tolerances at any point in your print.



THE MARK X


Uncompromised Strength, Precision and Beauty


The Mark X is the most powerful 3D printer on the market. With industrial-scale printing of incredibly strong parts and first ever precision sensing systems, the Mark X is destined to be the must-have printer for every manufacturer.

This printer combines the benefits of Markforged's unique fiber reinforcement for parts as strong as metal with advanced “build as designed” sensors and the beautiful surface finish of Onyx. The Mark X will empower you to take any design concept and make it a reality

Large Prints, High-Resolution


The large build volume of the Mark X makes it ideal for robotics, automotive parts, functional prototypes and prosthetics. With 50 micron resolution layer height, your parts will come out of the printer with a beautiful surface finish approaching the look and feel of injection molding.

Build Volume

WIDTH       DEPTH       HEIGHT
330            250            200
mm            mm            mm

Layer Height 50 micron

Print As-Designed Parts With Known Precision And Tolerance

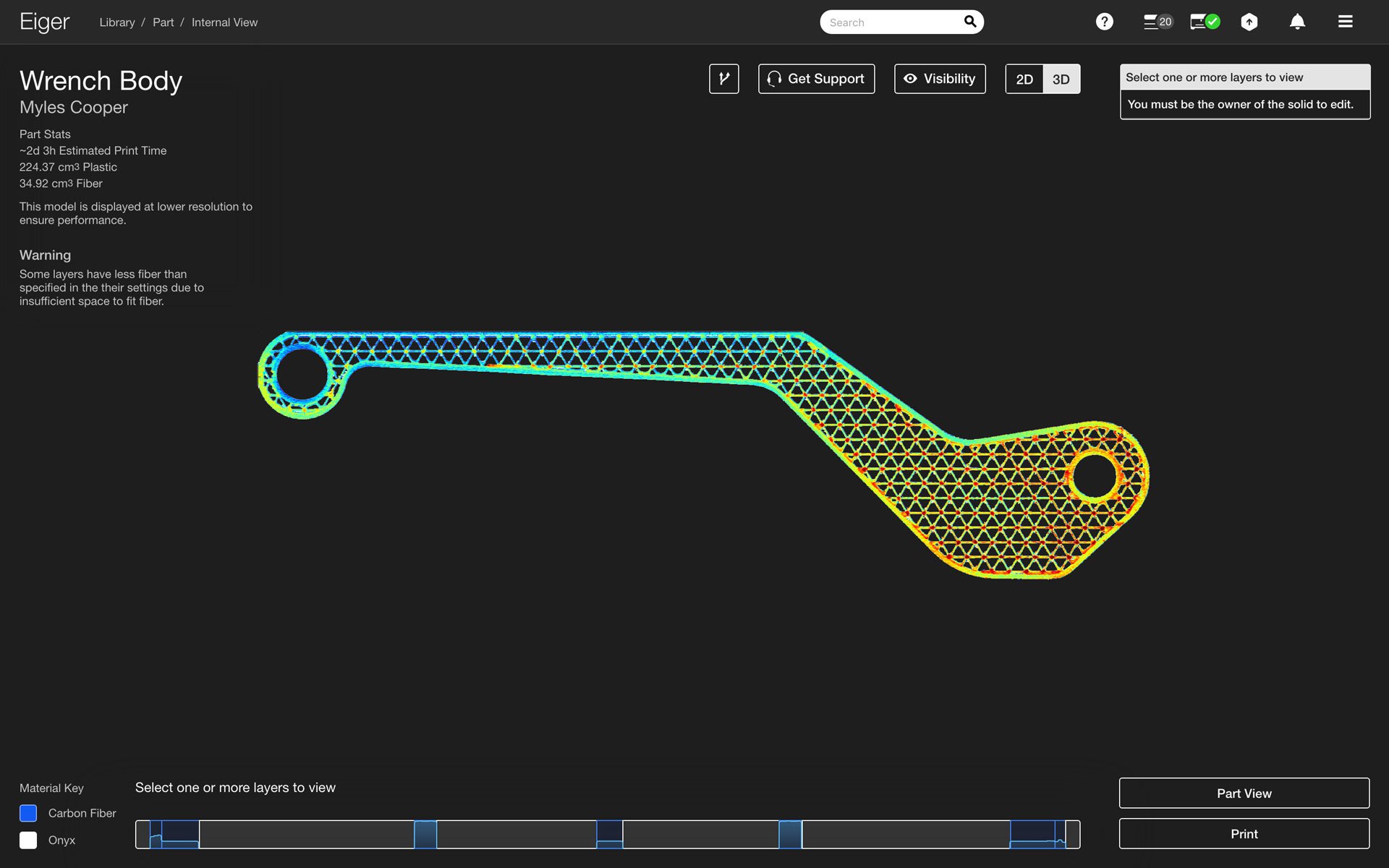

Define a tolerance specification in Eiger, our cloud based 3D printing software, and the Mark X will scan your part while it's printing to ensure that it always meets the spec. If an error is detected you will be alerted and can choose to cancel the print remotely, saving time and material

TECHNICAL SPECIFICATIONS
Build Envelope 575 mm x 467 mm x 928 mm 575 mm x 467 mm x 424 mm (without cabinet)
FOOTPRINT 10 – 150 mm/s
PLASTIC MATERIALS Nylon, Onyx
FIBER MATERIALS Carbon Fiber
Fiberglass
Kevlar
High Strength & High Temperature Fiberglass
Recommended Minimum Layer Height 0.1 mm
INSPECTION PARAMETERS 50 micron beam diameter
1 micron Z resolution
Z LAYER RESOLUTION 50 micron
SOFTWARE FEATURES Single Sign-On
Two-Factor Authentication
Organization Admin Portal
Early Access to New Features
SOFTWARE DELIVERY SaaS deployment and storage
Local Storage
Fully On-premise (Contact for more info)
INCLUDED WITH PRINTER Mark X printer and cabinet along with access to cloud Eiger software
800cc Nylon spool
800cc Onyx spool
150cc Carbon Fiber
150cc Fiberglass
150cc Kevlar
150cc HSHT Fiberglass
One extra print bed (2 total)
Extra nozzles
Onsite Markforged engineer training at customer site (available for a limited time)
